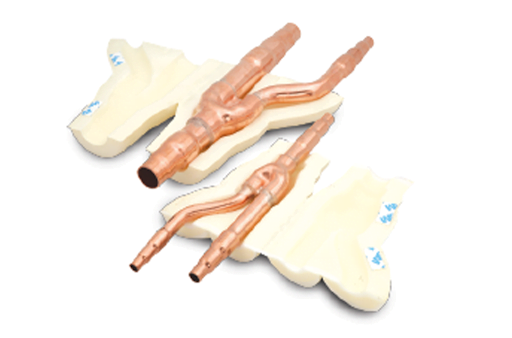

Refnet joints are the specified components that split the main line refrigerant flow into several branch lines in VRF/VRV systems. As such, these joints will play a huge role in maintaining the balance of the system for its effective and efficient functioning by ensuring that the proper amount of refrigerant is supplied to the indoor units. Proper installation of Refnet joints will prevent refrigerant leakage, uneven cooling or heating, and the inefficiency of the system.
Proper Positioning
Refnet joints should be installed at positions recommended by the system manufacturer for effective refrigerant distribution. This is usually placed horizontally at a height, allowing easy access at maintenance time. The joints should not be mounted in areas where high temperatures, as well as vibrations, occur, because these have an impact on the integrity of the joints.
Correct Orientation
Refnet joints must be fitted in a direction that allows the proper flow of refrigerant. The main line is attached to the inlet of the Refnet joint, and the branch lines are attached at the outlets. If it is installed with the wrong orientation, then it upsets the balance of the amount of refrigerant flowing in different parts of the system. Always follow the manufacturer’s instructions regarding orientation and installation.
Secure Connections
All connections to the Refnet joint shall be securely tightened without leakage. Proper brazing techniques should be used to form strong joints free of leaks.
Insulation
Proper insulation on the Refnet joint and pipes connected to it should not allow condensation to minimize heat loss. Insulating the Refnet joints makes the whole distribution of the refrigerant more efficient and avoids possible failures due to temperature changes.
System Balancing
After the installation of the Refnet joints, the system has to be balanced so that the refrigerant is supplied in the right quantities to all the installed indoor units. The system balancing is supposed to be carried out by competent technicians with corresponding tools and equipment.
Leak Testing
Following the installation, the system should undergo rigorous leak testing to identify any refrigerant leakage. Adopt leak detection methods, such as electronic leak detectors or soap bubble tests, to locate any possible leaks.
Follow instructions from Manufacturers
Always follow the instructions and recommendations of the manufacturer for the installation of Refnet joints. Many VRF/VRV systems involve particular requirements and strict instructions for installation.With this in mind, 22/7 Enterprise is pleased to offer a range of high-quality Refnet joints and other HVAC/R components to meet your installation requirements and ensure the reliable operation of your VRF/VRV systems.
